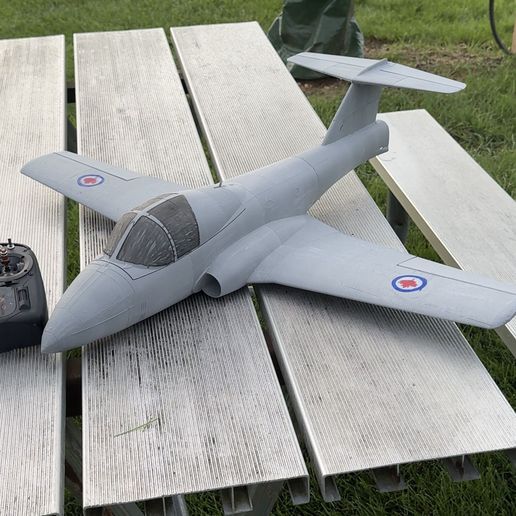

CT-114 Tutor 50mm

This project was a surprise, I’ve avoided the design because the airplane has a challenges. The intakes are way too small and the exhaust is too small. Nothing really fit right. After some planning I figured how to make it all work. The real question is how would it fly? To my surprise it flew great! It flies like an edgy trainer jet. I’d imagine that’s what it was intended to feel like. I went with an inverted airfoil on the horizontal tail to counter the main wing and it worked perfectly like my scout jet. The build is easy and enjoyable. A really fun airplane to fly.

Maiden flights https://a.co/d/08BeWH9r
Final flights CT-114 Tutor Files are available!!
https://youtu.be/07r6GAf17lo

Parts Needed

Any 50mm EDF 4s
Any 40Amp ESC
1300-2200 4s lipo
4x 4.3g servos (you must trim the tabs off) https://a.co/d/08BeWH9r
ESC/motor wire extensions
Servo wire extensions
Servo y adaptor for the ailerons
1.2mm pushrod
Velcro for the battery
Hot glue to install the fan and servos

770g all up weight
36” wingspan
31” length

Aircraft Specifications

• EDF: single 50mm
• Skill Level: Beginner
