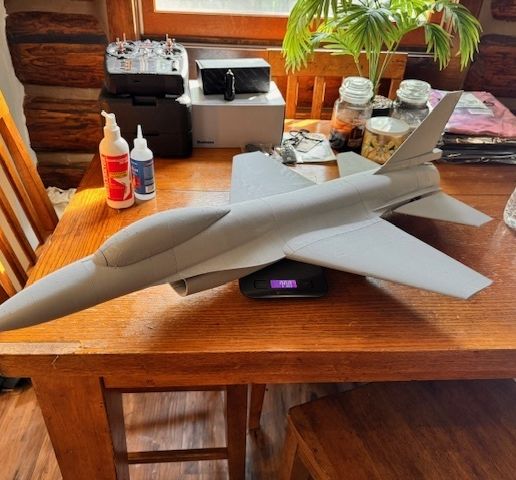

Latest F16 is the Gen 2. I have learned alot in the past 8 months and it all shows on the latest Gen 2 Viper. You will learn a few things with this new iteration. You DONT need a wing spar and you can fly a jet like this with 2 servos and NO control linkages or push rods. This viper uses the symmetrical servo head glued into a slot in the Taileron. it flies amazingly well and has so much control authority it almost feels thrust vectored. ENJOY!
Jet comes in at 770g AUW with a mix of gyroid and grid infill
Any 50mm youdl like must be 4s
40 amp ESC
I recommend these servos as the model is made for themhttps://a.co/d/02jsP6Lf
velcro for the battery
magenets
Hot glue for the EDF
CA glue for the plane.
Aircraft Specifications
- Servos: 2
