LW ASA Settings

Here are my best Active foaming Light Weight ASA settings.  Always remember ASA can release toxic chemicals in the air when heated, so use a filtered and ventilated room.  These are designed for Bambu Lab printers specifically the P1P, P1S, X1C, X1E, and H2D printers.  You may find they also work on similar printers such as the Prusa XL.

Much credit to the help of Scott Taylor for these settings!

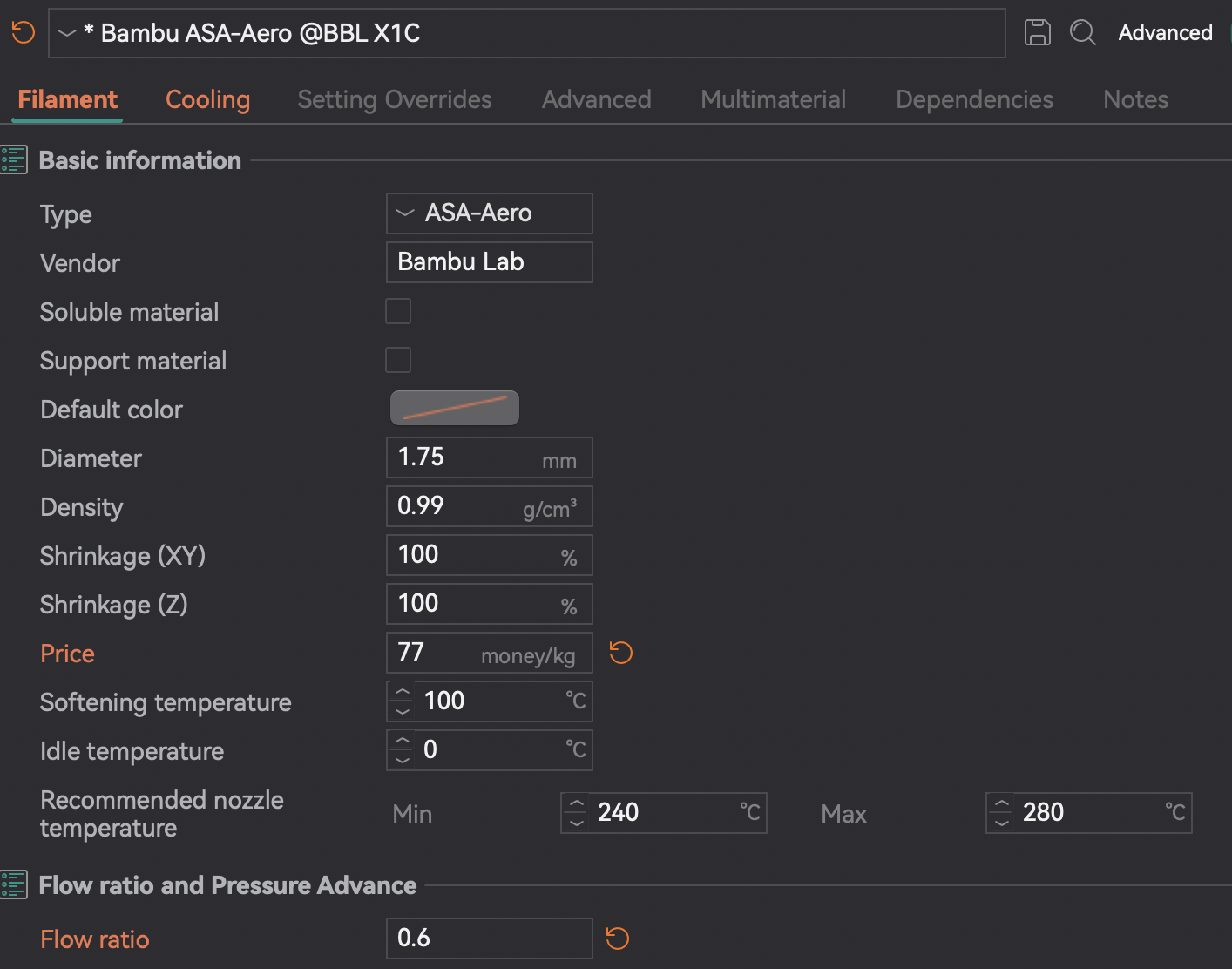

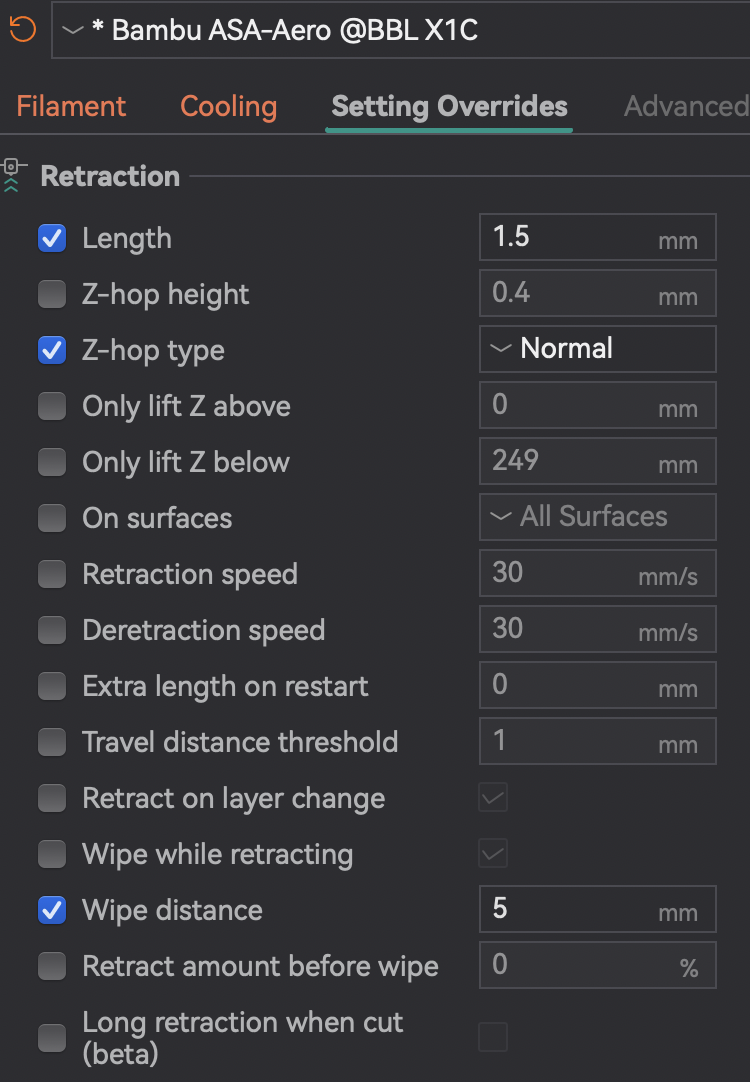

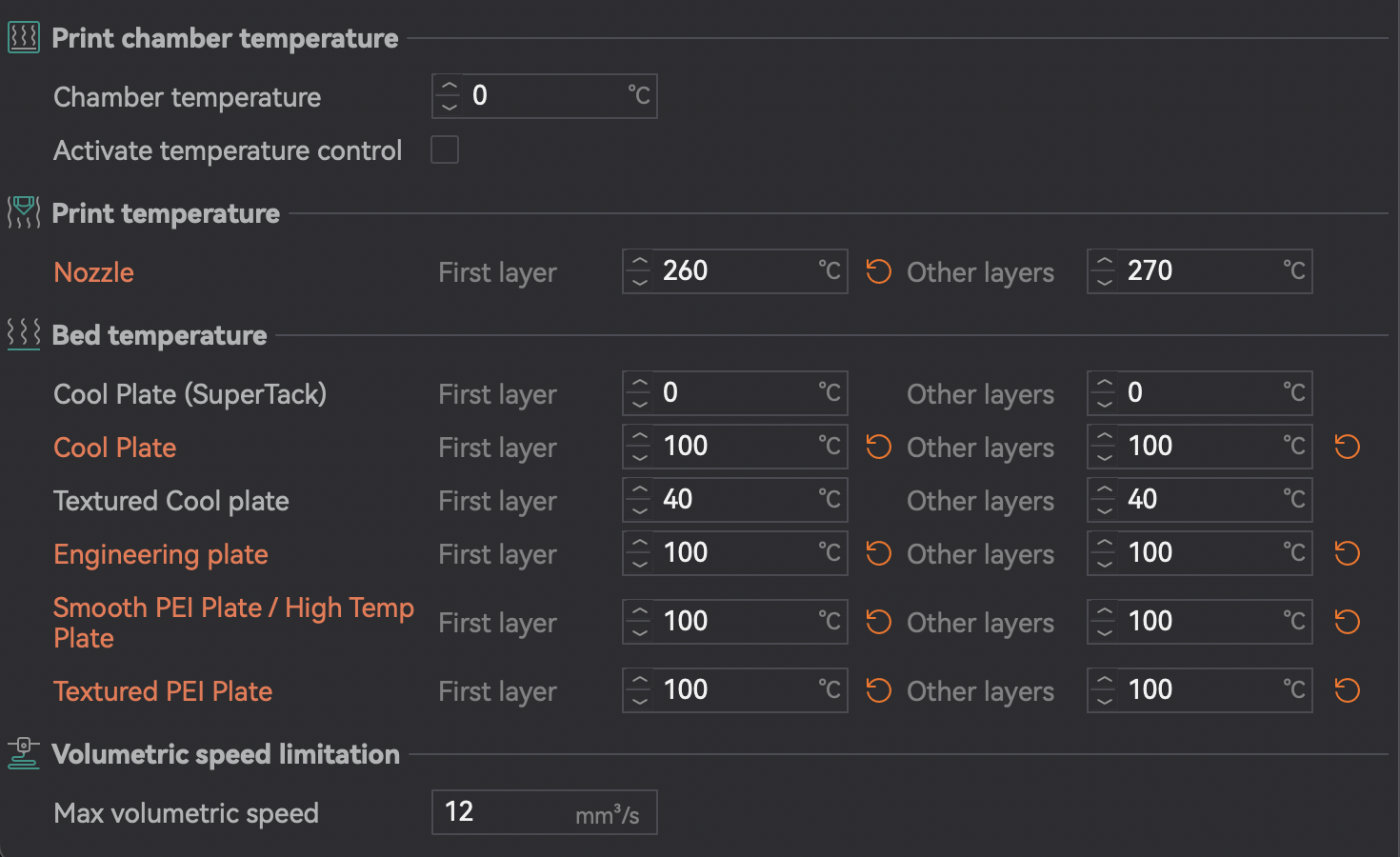

Filament settings

Plate and model settings

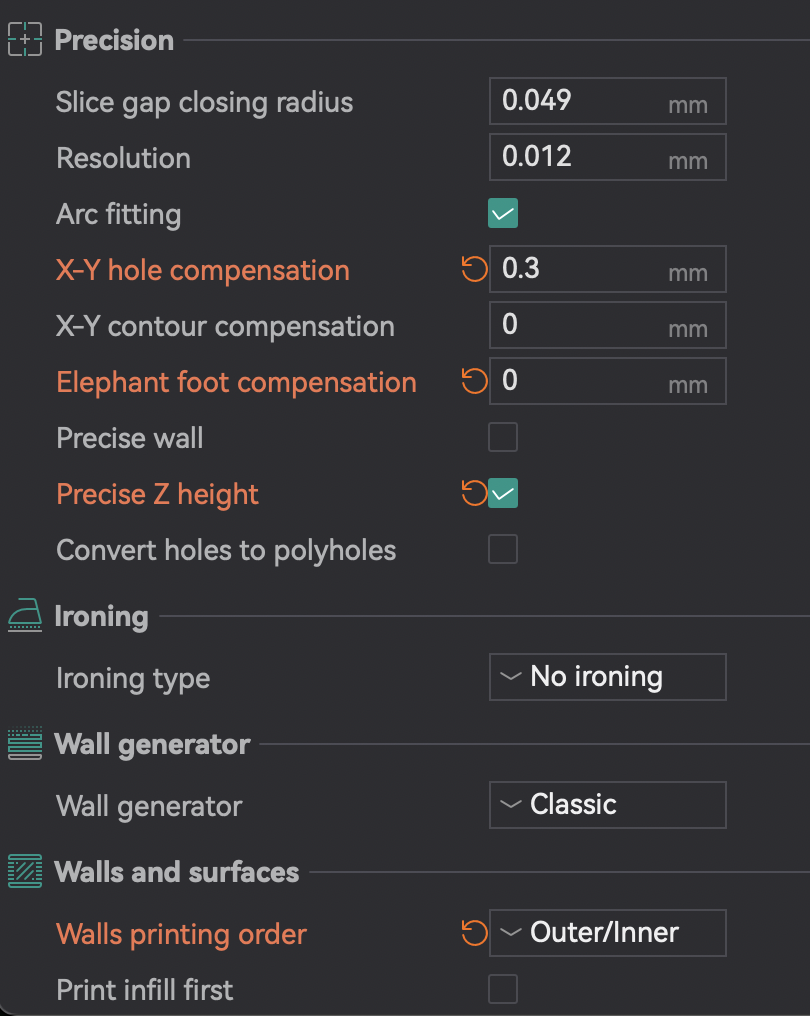

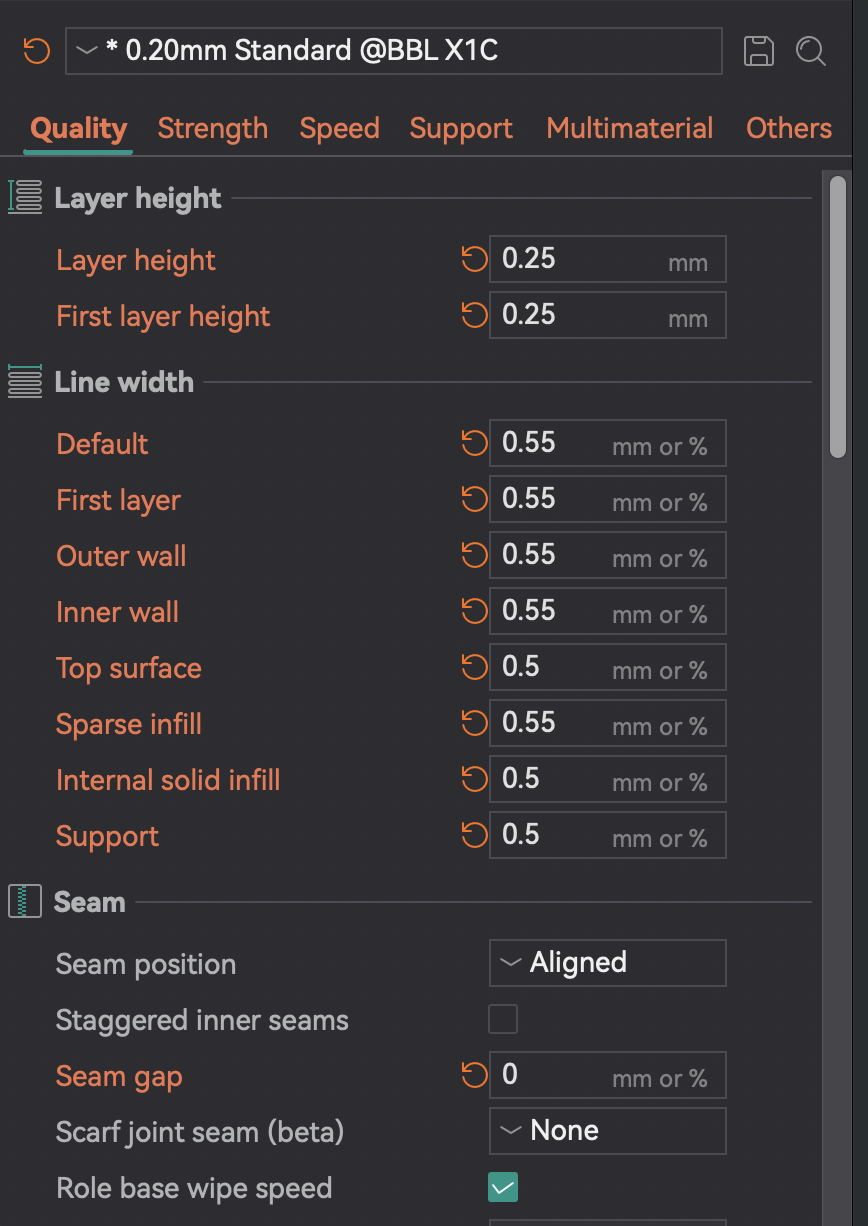

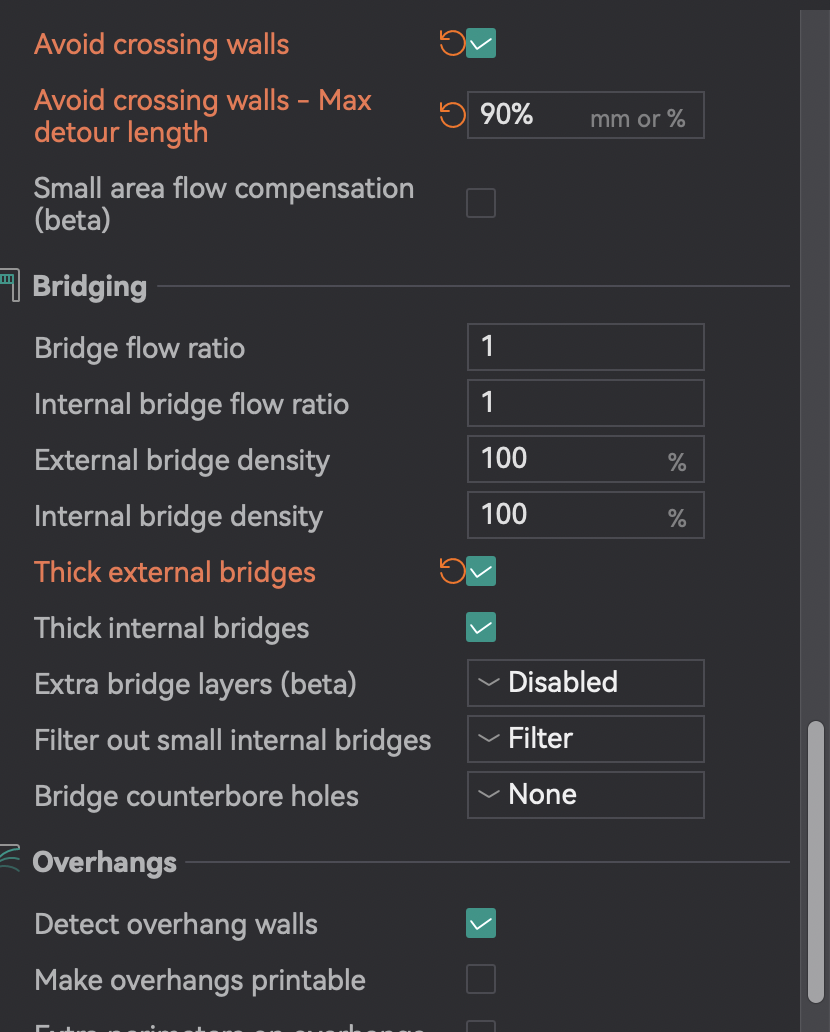

Quality tab

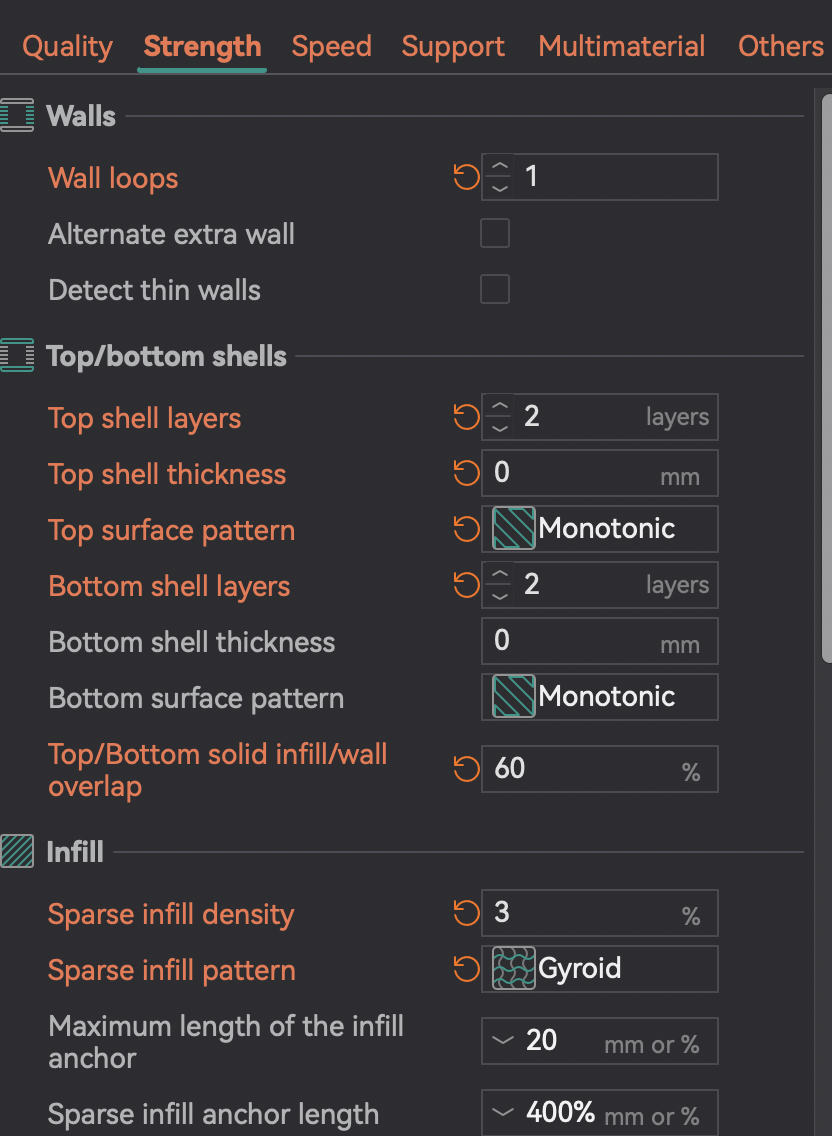

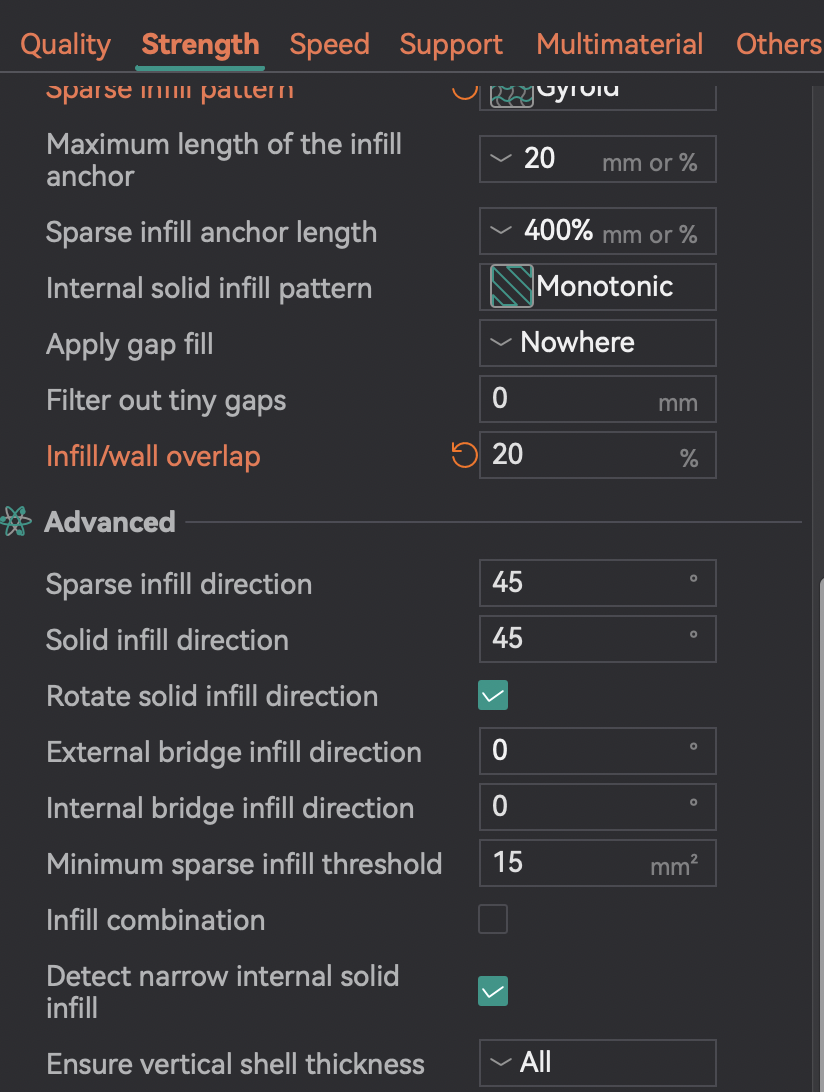

Strength Tab

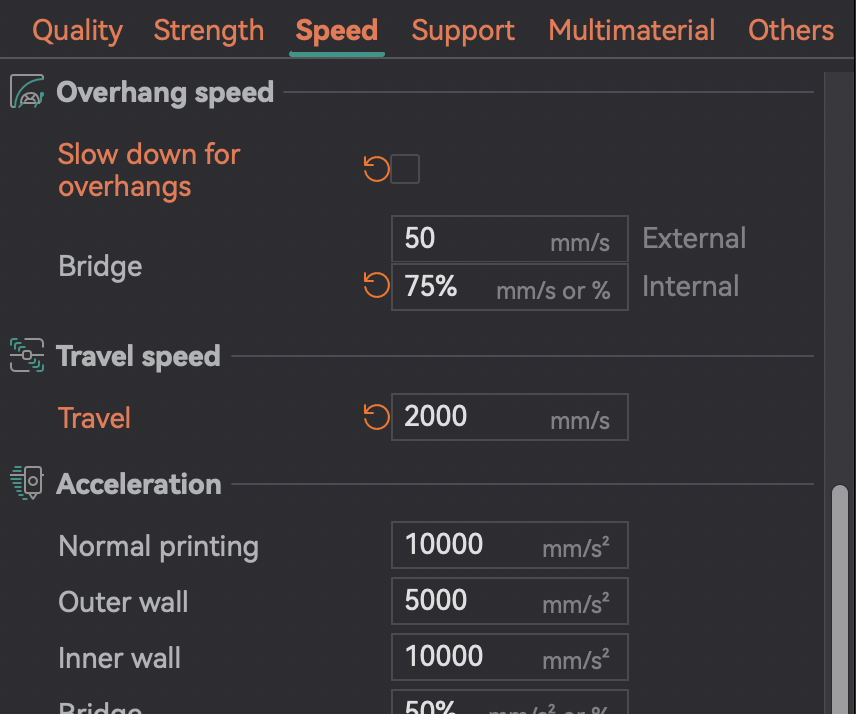

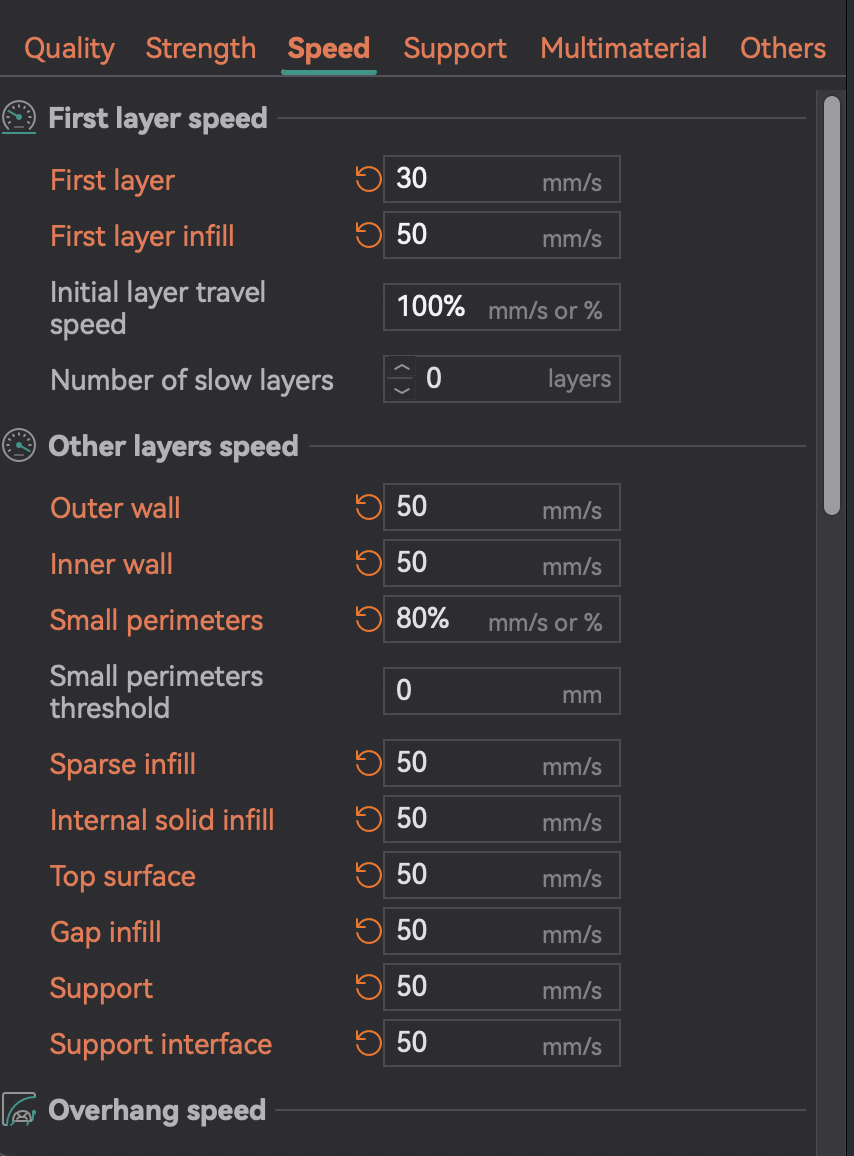

Speed Tab

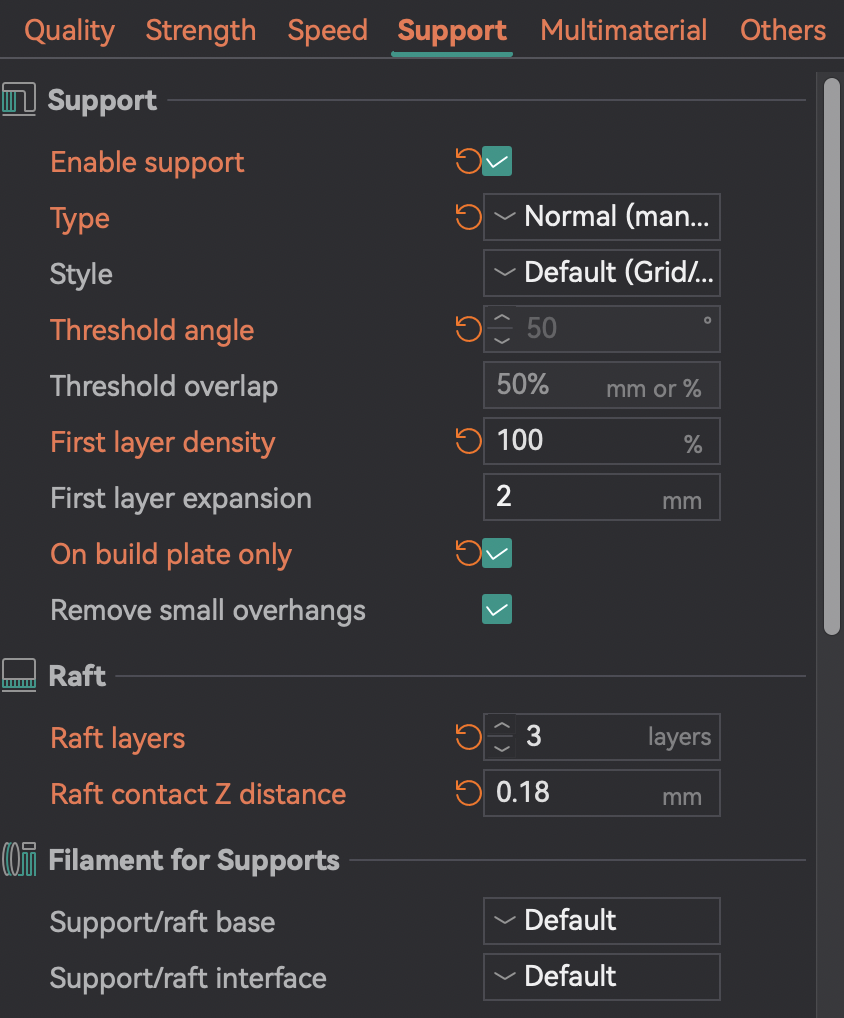

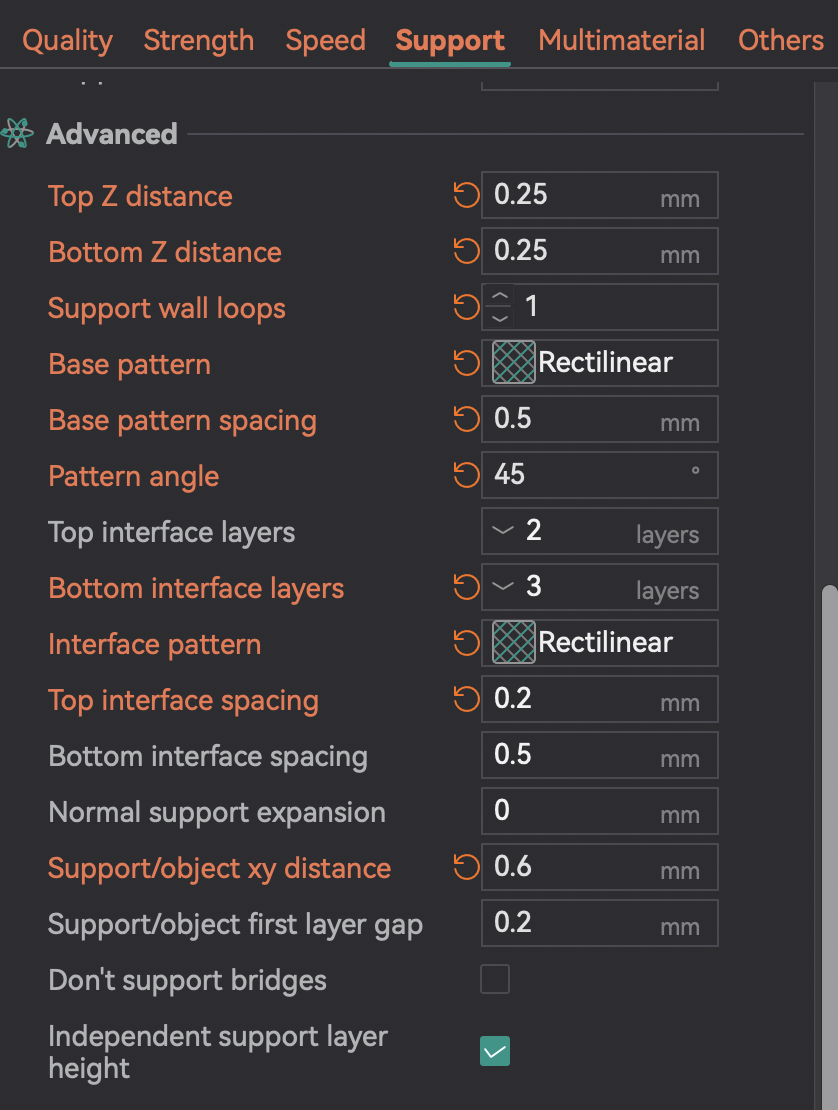

Support Tab




Brims only on objects that have very little surface contact with the build plate e.g. Wings.
